Hydraulic Parts and Castings — OEM Components to Customer Drawing and Specification
SMI manufactures hydraulic parts and castings to customer drawing and technical specification — covering hydraulic fittings, cylinder end components, mounting brackets, flanged connectors and associated precision machined components. Production spans casting, precision machining and surface treatment, with finished components supplied to hydraulic equipment manufacturers and industrial OEM customers worldwide.
Every component is produced to the customer’s own engineering drawing or specification — including material grade, dimensional tolerances, pressure rating, surface finish and inspection requirements. SMI does not supply standard catalogue hydraulic components — our capability is in manufacturing OEM parts to the exact requirements of each customer’s hydraulic system design.
Components Manufactured
Hydraulic Fittings and Connectors
Cast and precision machined hydraulic fittings — including flanged tube connectors, port adaptors and inline fittings — manufactured to SAE, ISO or customer-specified port standards. Bore dimensions, thread forms and sealing face geometry machined to the tolerances required for reliable high-pressure sealing in service. Materials typically include ductile iron, carbon steel and stainless steel depending on pressure rating and fluid compatibility requirements.

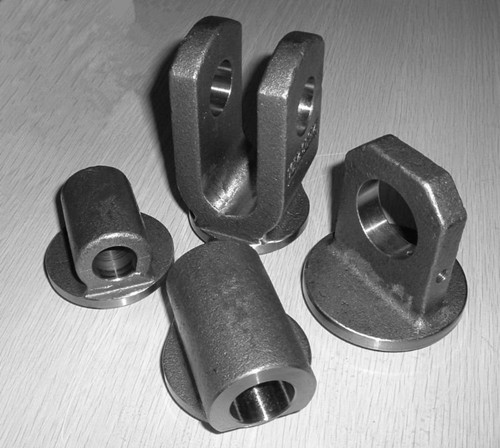

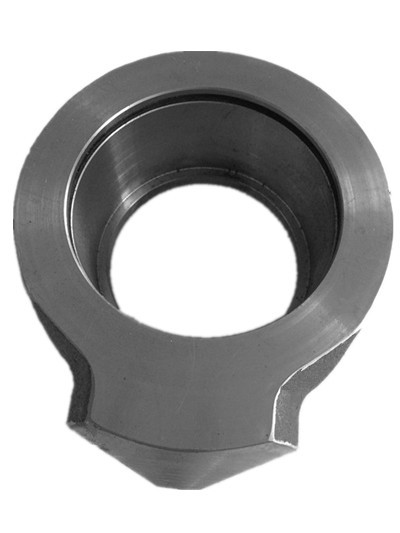

Cylinder End Components
Hydraulic cylinder end caps, gland housings, clevis ends and trunnion mounts — cast and machined components for hydraulic cylinder assemblies used in industrial machinery, mobile equipment and offshore applications. Bore concentricity, seal groove geometry and thread dimensions are machined to the tolerances specified in the customer’s cylinder design drawing.

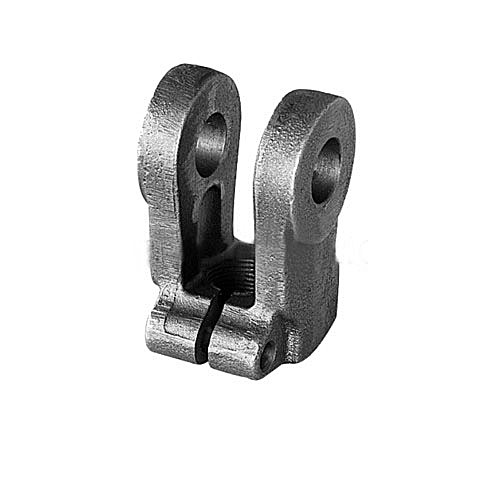

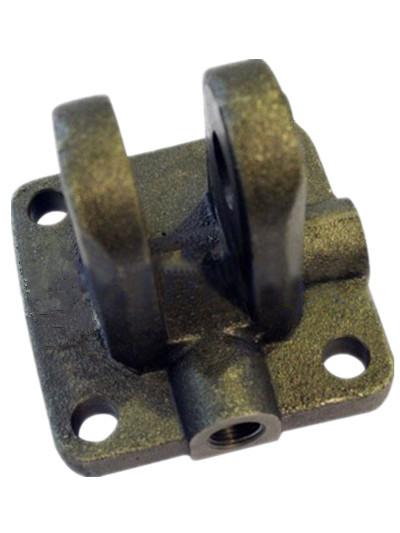

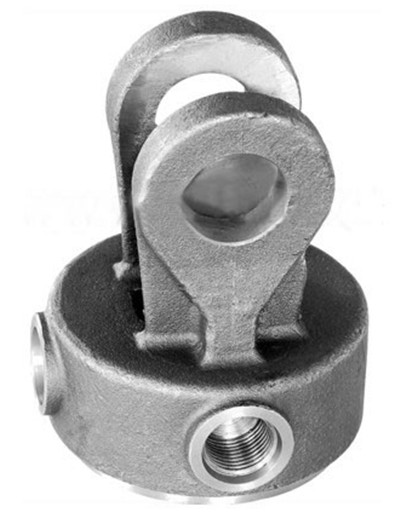

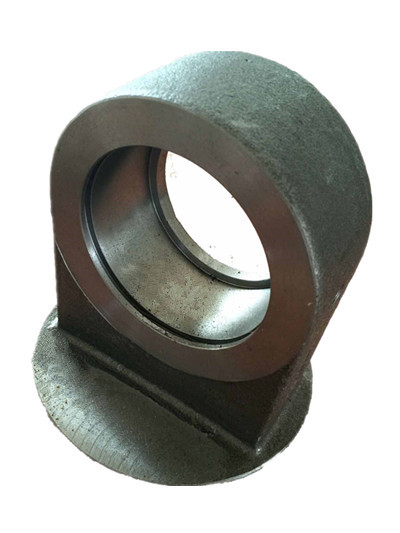

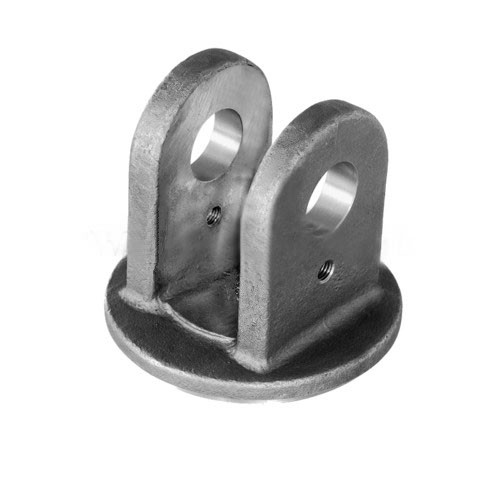

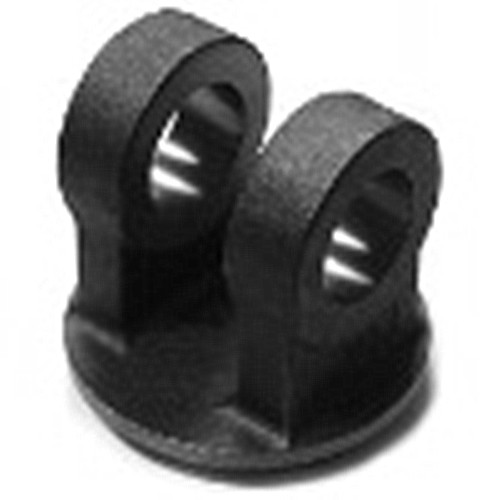

Mounting Brackets and Clevises
Cast steel mounting brackets, clevis forks and rod end attachments for hydraulic cylinder and actuator installations. Bore dimensions, pin hole alignment and mounting face geometry machined to assembly drawing requirements. Single-eye, double-eye and clevis fork configurations available to customer drawing.

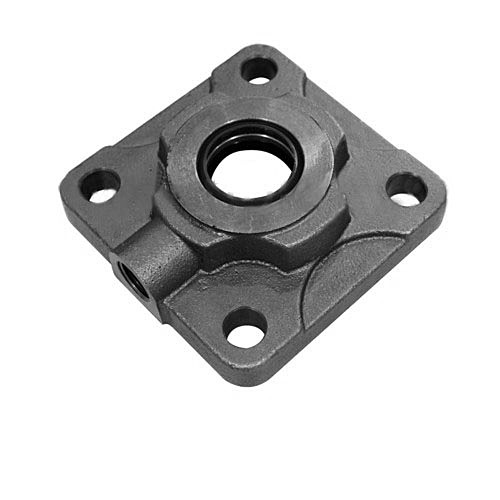

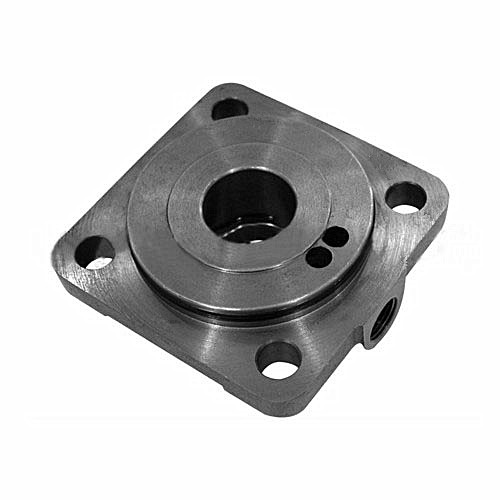

Flanged Base Components
Square and round flanged base castings for hydraulic valve mounting, pump mounting and manifold attachment — machined bolt patterns, precision bores and flat mating faces to customer specification.
Manufacturing Capability
| Operation | Capability |
|---|---|
| Casting | Grey iron, ductile iron, carbon steel, stainless steel — to customer pattern or 3D model |
| Precision machining | Bore machining, thread cutting, seal groove machining, flange face milling to drawing tolerance |
| Pressure rating | Component geometry and material grade specified to customer pressure requirement |
| Surface treatment | Zinc plating, phosphating, painting or other finishes to customer specification |
| Quality documentation | Dimensional inspection report, material certification — standard with every order |
| Custom configurations | All parameters to customer drawing — no standard catalogue constraints |
Application Sectors
SMI hydraulic components are manufactured for use across a wide range of industrial and mobile hydraulic applications. Component supply is not limited to specific equipment brands — SMI manufactures to the customer’s drawing for use in whatever hydraulic system the customer designs or maintains.
- Industrial machinery — hydraulic presses, injection moulding machines, metal forming equipment and factory automation systems
- Mobile equipment — construction machinery, agricultural equipment, forestry machines and material handling vehicles
- Mining and heavy industry — hydraulic roof supports, longwall equipment, crushing and screening machinery
- Marine and offshore — deck machinery, steering systems, hatch cover actuators and subsea equipment
- Energy sector — oil and gas production equipment, pipeline systems and power generation auxiliary systems
- Aluminium and metals processing — dross press hydraulic systems, casting equipment and furnace handling machinery
OEM Supply
SMI’s hydraulic component manufacturing service is available to hydraulic equipment manufacturers and system integrators requiring:
- Casting to drawing — hydraulic component castings produced to the customer’s pattern or 3D model
- Machining to drawing — precision machining of cast components to the customer’s dimensional and tolerance specification
- Complete component supply — cast and fully machined components ready for assembly, supplied with dimensional inspection report and material certification
- Spare parts programmes — ongoing supply of replacement components alongside new equipment orders
- Development support — SMI can review customer drawings and advise on casting and machining feasibility before order placement
بالعربية — قطع الهيدروليك والمسبوكات حسب رسومات العميل
تقوم SMI بتصنيع قطع الهيدروليك والمسبوكات وفقاً لرسومات العملاء والمواصفات التقنية — تشمل وصلات الهيدروليك، ومكونات نهايات الأسطوانات، وأقواس التركيب، والموصلات ذات الفلنجة، والمكونات المُشغَّلة بدقة. يُصنَّع كل مكون وفقاً لرسم العميل الخاص. للاستفسار، تواصل مع فريق SMI →
En Español — Componentes Hidráulicos y Fundiciones según Especificación del Cliente
SMI fabrica componentes hidráulicos y fundiciones según los planos y especificaciones técnicas del cliente — incluyendo racores hidráulicos, componentes de extremos de cilindros, soportes de montaje, conectores bridados y componentes mecanizados de precisión. Cada componente se fabrica según el plano propio del cliente. Para consultas, contacte al equipo de SMI →
Auf Deutsch — Hydraulikteile und Gussteile nach Kundenzeichnung
SMI fertigt Hydraulikteile und Gussteile nach Kundenzeichnung und technischer Spezifikation — einschließlich Hydraulikverschraubungen, Zylinderendkomponenten, Befestigungsbügeln, Flanschverbindern und präzisionsbearbeiteten Komponenten. Jedes Bauteil wird nach der eigenen Zeichnung des Kunden gefertigt. Für Anfragen, kontaktieren Sie das SMI-Team →
Related Products — SMI Precision Castings and Machined Components
- Industrial Pump Parts and Castings — precision components to customer specification
- Valve Parts and Precision Machined Components — castings and machined components to drawing
- Contact SMI — Hydraulic Parts Enquiry →
Request a Consultation
To discuss hydraulic component casting and machining requirements, please provide the following at enquiry stage:
- Component type — fitting, cylinder end, bracket, flange or other
- Material specification — grade and any special requirements
- Pressure rating — working pressure and test pressure
- Key dimensions — drawing preferred, sketch with key dimensions acceptable
- Surface finish and treatment requirements
- Annual volume — pieces per year
- Application sector — industrial, mobile, marine, mining or other
SMI will respond with a written technical assessment and commercial proposal. Contact SMI — Hydraulic Parts Enquiry →
