Customised Castings & Precision Machining

By

Pump parts

Industrial Pump Parts and Castings — Precision Components to Customer Specification

SMI manufactures industrial pump parts and castings to customer drawing and technical specification — covering pump housings, volute casings, impellers, end covers, bearing brackets and associated precision machined components. Production spans casting, precision machining and surface treatment, with finished components supplied to pump manufacturers and industrial equipment OEMs worldwide.

SMI’s capability in this area is defined by its casting and precision machining depth, not by a standard product catalogue. Every component is produced to the customer’s own engineering drawing or specification — including material grade, dimensional tolerances, surface finish and inspection requirements.

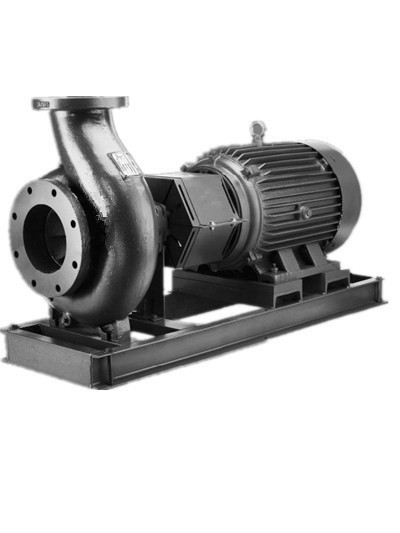

Complete industrial centrifugal pump assembly — cast housing, motor and base frame, supplied to customer drawing and specification

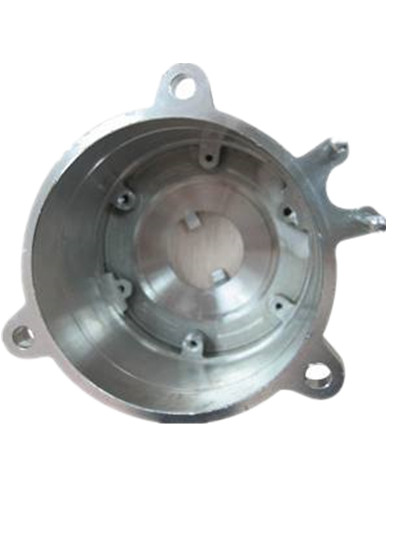

Precision machined pump end cover — stainless steel, multi-port flange face and bearing seat machined to customer dimensional specification
Pump volute casing interior — cast profile and precision machined bore and mating face, dimensional inspection report supplied as standard

Manufacturing Capability

Casting

Pump housings, volute casings and impeller bodies are among the more geometrically complex castings in industrial equipment manufacture — requiring accurate core setting, controlled solidification and consistent wall thickness to meet the hydraulic and pressure requirements of the finished pump. SMI’s casting capability covers grey iron, ductile iron, carbon steel, stainless steel and speciality alloys for corrosion-resistant applications.

Precision Machining

Cast pump components require precision machining of mating faces, bore dimensions, bearing seats and sealing surfaces to achieve correct assembly fit and hydraulic performance. SMI’s machining capability covers the full range of pump component features — flanged faces, impeller wear ring bores, shaft seal housings and bolt patterns — to the tolerances specified in the customer’s engineering drawing.

Corrosion-Resistant Materials

Pump applications in seawater service, offshore environments and chemical process industries impose material requirements beyond standard grey or ductile iron. SMI supplies pump components in duplex stainless steel, super duplex, Hastelloy-equivalent alloys and other corrosion-resistant specifications for customers operating in aggressive fluid environments. Material selection is confirmed at the enquiry stage based on the fluid handled, operating temperature and pressure, and customer material specification.

Component Types

Component Typical Materials Key Manufacturing Operations
Pump housing / volute casing Grey iron, ductile iron, carbon steel, stainless steel Casting, flange face machining, bore machining
Impeller Grey iron, stainless steel, duplex stainless Casting, balance machining, wear ring bore
End cover / bearing bracket Grey iron, ductile iron, carbon steel Casting, bearing seat machining, seal housing
Wear rings Bronze, stainless steel, hard iron Turning, grinding to close tolerance
Shaft sleeves Stainless steel, hard chrome Turning, grinding, surface treatment
Stuffing box / seal housing Grey iron, stainless steel Casting, precision bore machining

Application Areas

Industrial Process Pumps

Centrifugal pumps, multistage pumps, gear pumps and screw pumps used in general industrial process applications — chemical processing, power generation, oil and gas upstream and downstream, and heavy industrial cooling and fluid transfer systems. SMI supplies cast and machined components for both single-stage and multistage configurations to customer drawing.

Marine and Offshore Pumps

Seawater cooling pumps, fire pumps, ballast pumps and general service pumps for marine and offshore applications impose specific material and dimensional requirements driven by classification society rules and the corrosive nature of the service environment. SMI has experience supplying pump components in seawater-resistant alloys for marine customers, with material certification supplied as standard.

Oil and Gas Industry Pumps

Upstream and downstream oil and gas applications include high-pressure injection pumps, pipeline transfer pumps and produced water handling systems — all of which involve aggressive fluid environments and high reliability requirements. SMI’s corrosion-resistant material capability is directly relevant to this sector.

Special Fluid Applications

Chemical process pumps handling aggressive or reactive fluids require material selection beyond standard iron and carbon steel. SMI can manufacture pump components in stainless steel, duplex stainless and higher-alloy specifications for customers whose process fluids impose specific corrosion or contamination requirements.

OEM and Custom Supply

SMI’s pump component manufacturing service is available to pump manufacturers and industrial equipment OEMs requiring:

  • Casting to drawing — pump housings, impellers and other cast components produced to the customer’s pattern or 3D model
  • Machining to drawing — precision machining of cast components to the customer’s dimensional and tolerance specification
  • Complete component supply — cast and fully machined components ready for assembly, supplied with dimensional inspection report and material certification
  • Material substitution advice — where a customer is reviewing material specifications for corrosion resistance improvement, SMI application engineers can advise on alternative alloy options
  • Spare parts supply — ongoing supply of replacement components alongside new equipment orders

بالعربية — قطع غيار المضخات الصناعية والمسبوكات حسب المواصفات

تقوم SMI بتصنيع قطع غيار المضخات الصناعية والمسبوكات وفقاً لرسومات العملاء والمواصفات التقنية — تشمل أغلفة المضخات، والدوارات، والأغطية الأمامية، ومكونات الدقة المُشغَّلة. تغطي القدرة الإنتاجية المواد المقاومة للتآكل للتطبيقات البحرية ومعالجة السوائل الكيميائية. لمناقشة متطلبات قطع غيار المضخات الخاصة بك، تواصل مع فريق SMI →

En Español — Componentes y Fundiciones para Bombas Industriales

SMI fabrica componentes y fundiciones para bombas industriales según los planos y especificaciones técnicas del cliente — incluyendo carcasas de bombas, rodetes, tapas frontales y componentes mecanizados de precisión. La capacidad de producción cubre materiales resistentes a la corrosión para aplicaciones marinas y de fluidos químicos agresivos. Para consultas sobre componentes de bombas, contacte al equipo de SMI →

Em Português — Peças e Fundições para Bombas Industriais

A SMI fabrica peças e fundições para bombas industriais de acordo com os desenhos e especificações técnicas do cliente — incluindo carcaças de bombas, impulsores, tampas dianteiras e componentes usinados de precisão. A capacidade de produção abrange materiais resistentes à corrosão para aplicações marinhas e de fluidos químicos agressivos. Para consultas sobre componentes de bombas, entre em contato com a equipe SMI →

Related Products — SMI Precision Castings and Machined Components

Request a Consultation

To discuss pump component casting and machining requirements, please provide the following at enquiry stage:

  • Component type — housing, impeller, end cover, wear ring, other
  • Material specification — grade, standard and any special requirements
  • Key dimensions and weight — drawing preferred
  • Surface finish and inspection requirements
  • Annual volume — pieces per year
  • Application — fluid handled, operating pressure and temperature

SMI will respond with a written technical assessment and commercial proposal. Contact SMI — Pump Parts Enquiry →
