Shredder Wear Parts

Shredder Wear Parts

By

Overview of Wear Parts’ Material Standards

Sino Machine Industry Overview of Material Standards
Typical Applications:
Scrap Metal Shredder, Waste Shredder, Hammer, Liners, Grates, Anvil, Cap, Front & Back Wall, Ejection Door, Quarrying /Aggregate /Mining Crushers, Mantles, Bowls, Jaw Plates, Cement Vertical Grinding Mill, Liners, Bearing Housing and Cap
General Uses:
Abrasion resistant, Impact toughness, Abrasion resistant, Impact toughness, Wear resistant casting, General Engineering
Material Type:
AS 2074 H1A, H1B, BS 3100,
ASTM A128 A, C, E-1, JIS G5131, SCMn H1, H11,
ASTM A148, JIS G5131, SCMn H1, H11, BS 3100, ASTM A-27
Equivalent Specifications:
Austenitic, Mn Steel, Mo Steel or without Mo, Low carbon alloy steel with Mo steel, 13Mn/18Mn/21Mn Steel,
*19Cr,21Cr,22Cr,24Cr-26Cr,27Cr,29Cr,32Cr depending on customer request, Cast Steel

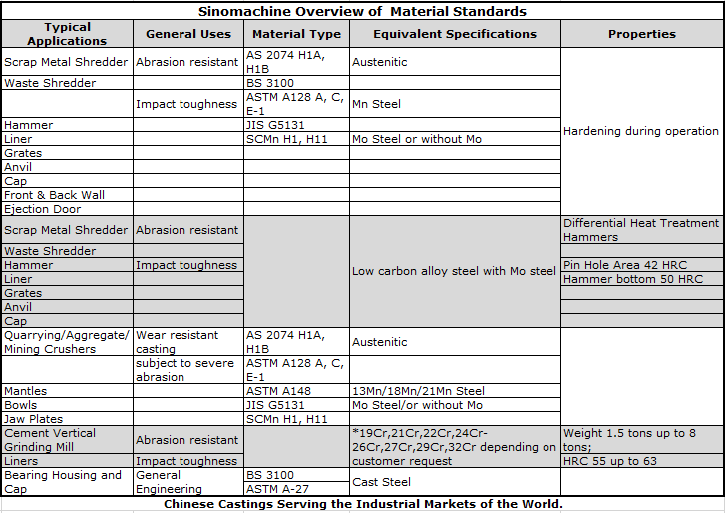

Sinomachine overview of material standards
Sinomachine overview of material standards

Chinese Castings Serving the Industrial Markets of the World. Also we offer OEM/ODM parts. The wear parts including wear spare parts which Sino Machine Industries supplied were produced per customer’s drawings or specifications. All the parts are made in China.

By

Steel Casting

Material:
Carbon; alloy steels
Wear resistant steel (austenitic manganese)
Stainless steels (heat & corrosion resistance)
Standard Specifications: ASTM, DIN, BS, Chinese GB
Maximum Casting Weight: 130MT (286,600 lbs)

Mold Medium:
Materials – green sand, chemically bonded sand (sodium silicate, resin)
Methods– mechanized molding and core-making, hand molding and core-making, thermally bonded shell molds and cores

Heat Treatment:

Titanium ring Ti-6AL-4V，Gr5 GR7
Titanium ring (Ti-6AL-4V，Gr5 GR7)

Full anneal
Normalize
Normalize & temper
Quench & temper
Case hardening

Melting Equipment:
Electric arc or induction furnaces as appropriate

Machining Capability:

To meet the diversified markets, we can further rough machine or finish machine the castings, forgings and other wrought materials to meet the requirements of our customers.

Main Production:

Mining equipment – crusher, ball mills, earthmover, spindles & structural

By

Crusher & Wear Part

The main products include toothed plates, side guard plates and depression bars or jaw crushers, rolling mortar walls (fixed cones) and crusher walls (movable cones) of cone crushers, lining plates of ball mills, rod mills and coal pulverizers, plate hammers, hammers and lining plates of reaction crushers and hammer crushers, hammers, grate bars and lining plates of metal crushers, etc. falling into around 15,000 varieties.

Our main Crusher & Wear Part as as following:
Reaction Crusher Wear Part, Cone Crusher Wear Part, Jaw Crusher Wear Part

All crusher & wear parts supplied by Sino Mahince Industries are made in China. Also we offer OEM/ODM parts. The crusher & wear parts (including crusher & wear spare parts) , shredderw wear parts which Sino Machine Industries supplied were produced per customer’s drawings or specifications.
