Machined Parts & Custom Castings

Machined Parts & Custom Castings

By

Cone Crusher Parts

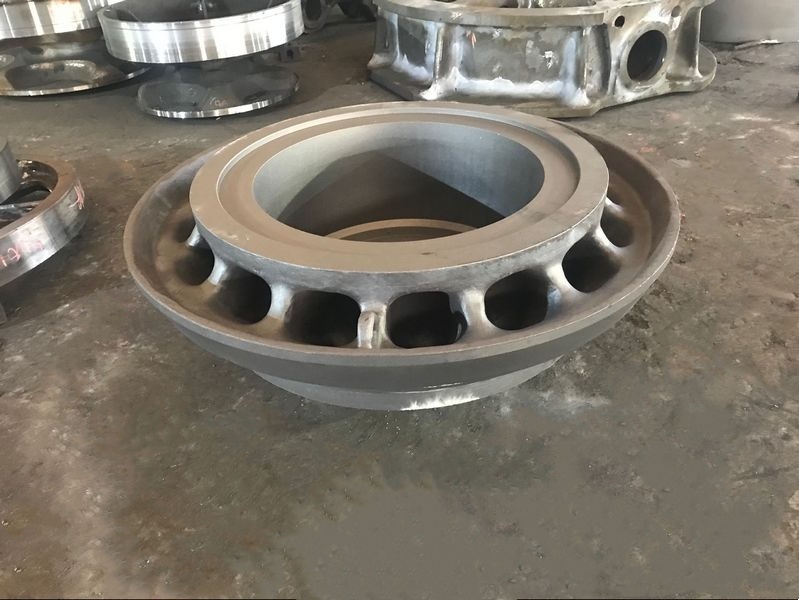

Cone crusher parts

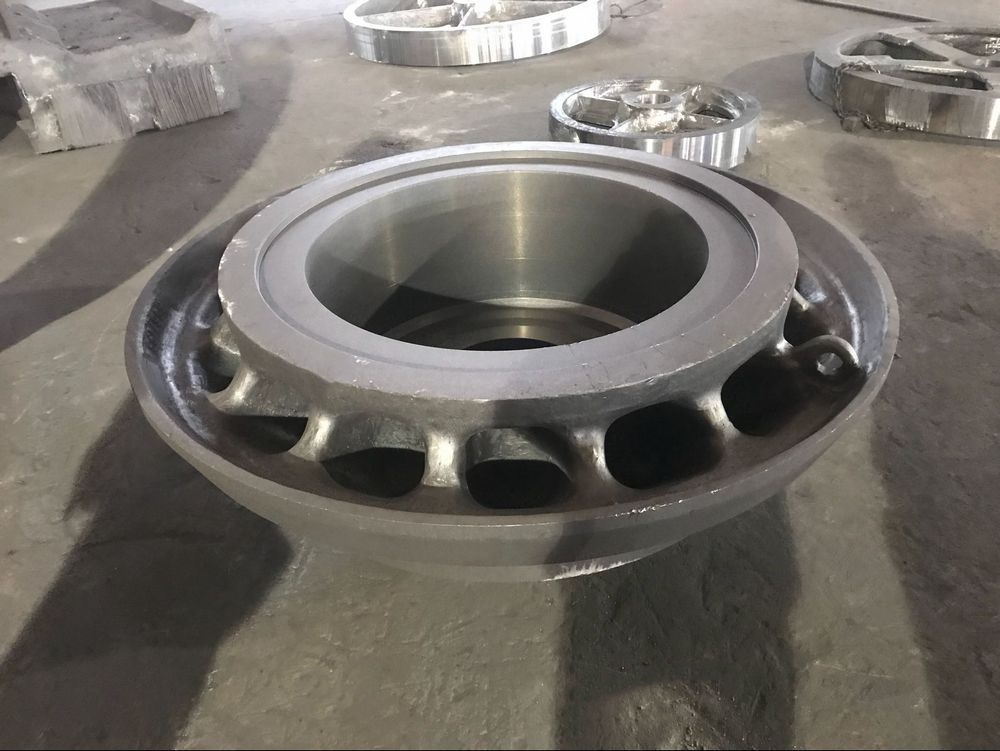

Cone crusher parts

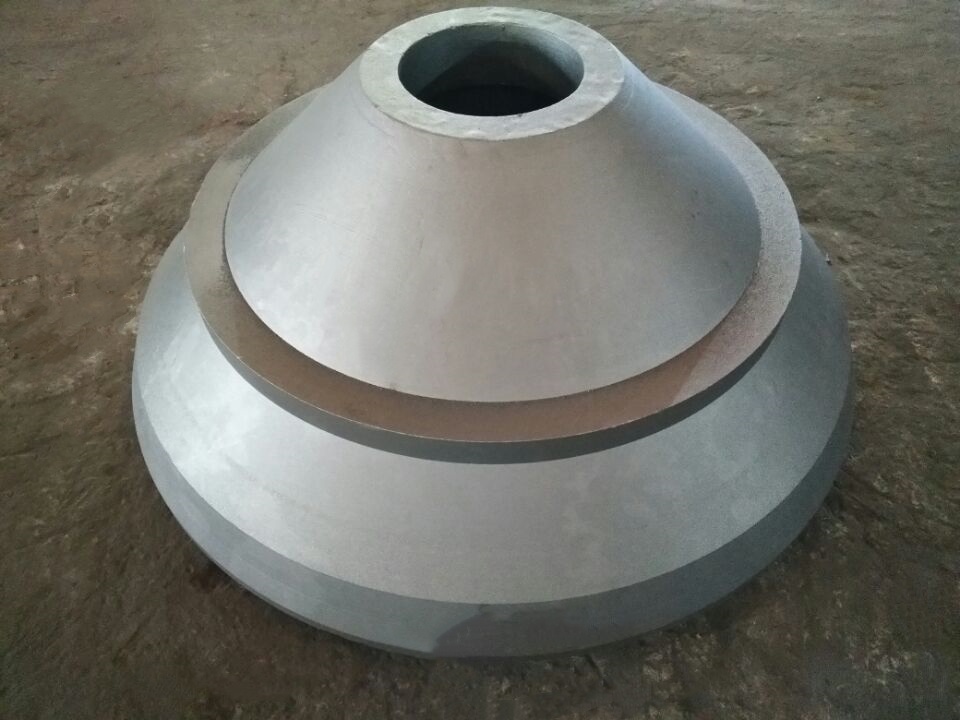

Cone crusher parts

Cone crushers are suitable for secondary and tertiary crushing in direct feed applications. The range uses advanced crusher technology to provide high volumes of excellently shaped product.

Features:
When some foreign matters that cannot be crushed go into the crushing chamber or the machine is overloaded due to some reasons, the spring protection system of cone crusher will increase the discharging mouth and the foreign matters will be discharged from the crushing chamber, thus realizing protection. If the foreign matters are stuck at the discharging mouth, the spring protection system will start the chamber cleaning system and continue to increase the discharging mouth, so that the foreign matters can be discharged from the crushing chamber of cone crusher. Under the function of the spring, the discharging mouth will be automatically reset and cone crusher will resume normal work. This series of cone crusher is divided into three types, namely coarse cone crusher, medium cone crusher and fine cone crusher and the customers can choose different type according specific needs.

Working principle:
When cone crusher begins to work, the electro motor drives the eccentric sleeve through the spring coupling, drive shaft and a pair of angle gear, so that the crushing wall of cone crusher gets close to and then gets away from the surface of the rolling mortar wall fixed on the adjusting sleeve, and the ores inside the crushing chamber will be constantly impacted, squeezed and bent to be crushed.

The Main Types and Function of Cone Crushers:
This series of crusher machine is divided into three types, namely coarse cone crusher, medium cone crusher and fine cone crusher, and the standard type is suitable for medium crushing; the medium type and the short-headed type is suitable for fine crushing, so that the customers can choose different types according specific need.

All cone crusher parts supplied by Sino Machine Industries are made in China. The cone crusher parts including cone crusher spare parts which Sino Machine Industries supplied were produced per customer’s drawings or specifications.

By

Impact Crusher Parts

The impact crusher range is ideal for shaping applications including making chips, sand, concrete manufacture, and glass recycling. The range includes both horizontal and vertical impact crushers.

Features:
1. It has big feeding mouth, high crushing chamber, high adaptability of the material hardness and small amount of stone powders
2. The gap between the impacting plate and the plate hammer is convenient to adjust so that it can effectively control the discharging granularity and the particle shape is good.
3. It has compact structure and strong rigidness, and the rotor has big rotational inertia.
4. It adopts high chromium plate so that it has shock resistance, abrasion resistance and big impacting force.
5. It adopts no key links so that it is convenient in maintenance and repair and economical and reliable.
6. It has comprehensive crushing functions, high production ratio, small abrasion and high comprehensive benefits.

Working principle:
Impact crusher is a kind of crushing machine that uses impacting energy to crush materials. When the machine works, driven by the electro motor, the rotor will rotate with high speed, and when the materials go into the action zone of the plate hammer, they will strike and are crushed on the plate of the rotor, and then are crushed again when they are thrown to the impacting device, and then the materials will bounce back from the impact lining board and go to the action zone of the plate hammer and are crushed again. This process will proceed repeatedly, and the materials go into the first, second and third impacting chamber to be crushed until they are crushed to the required granularity, and then discharged from the discharging mouth. Adjusting the gap between the impacting rack and the rotor can change the discharging granularity and the shape of the materials.

The Handling Materials and Application of Impact Crusher:
This series impact crusher is able to crush coarse, medium and fine materials such as granite, limestone and concrete whose feeding granularity does not exceed 500mm and compression strength does not exceed 350MPa in many industries such as ore crushing, railway, highway, energy, cement, chemistry and constriction. The size of the discharging granularity is adjustable, and the crushing specifications are diverse.

All impact crusher parts supplied by Sino Mahince Industry are made in China. The impact crusher parts including impact crusher spare parts which Sino Machine Industry supplied were produced per customer’s drawings or specifications.

By

Jaw Crusher Parts

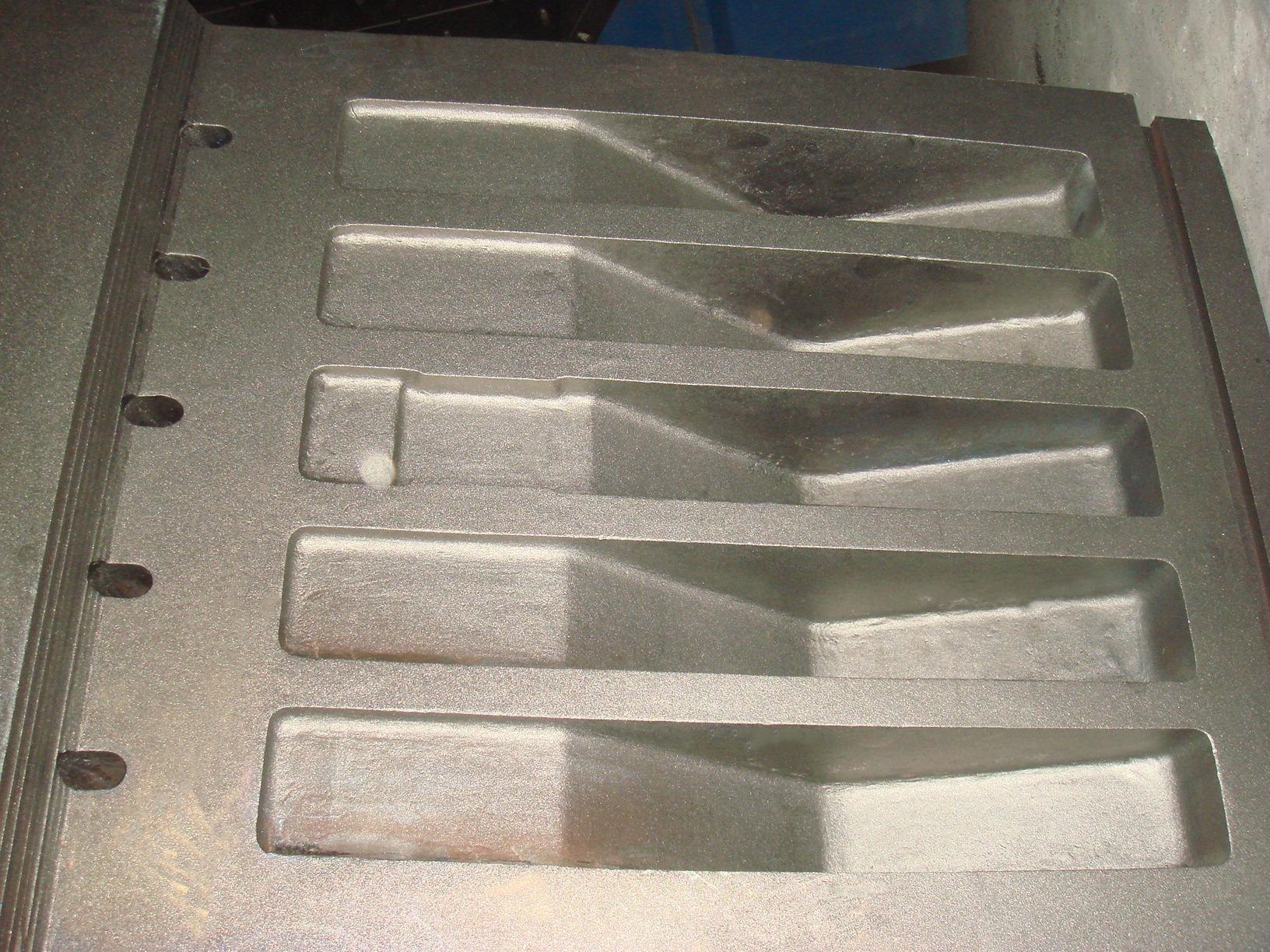

Jaw Crusher parts
Jaw Crusher parts
Jaw Crusher parts

Jaw crushers are designed to exceed the primary crushing needs of customers in the mining, quarrying and recycling industries. These machines are amongst the most advanced and reliable in the market and are highly productive in a variety of applications.

Features:
1. It adopts world-level manufacturing technology and high-end manufacturing materials.
2. More advanced movable jaw assembly makes it more durable. The movable jaw assembly uses high-quality steel casting and drives through two large-sized cast steel flywheels. In addition, the heavy eccentric shaft also adopts forging stock which makes series jaw crusher have extraordinary reliability.
3. The bearing pedestal adopts unitary cast steel structure. The unitary cast steel bearing pedestal can ensure comprehensive fitting with the crusher rack, and at the same time, greatly increase the radial strength of the bearing pedestal, whereas split type bearing pedestal does not have these advantages.

A jaw crusher comprises several main components, including the crushing chamber, the moving jaw, and the fixed jaw. These parts help the jaw crusher crush rock and other materials. Here are the critical parts of a jaw crusher and their functions:
Front frame, Lower Moving jaw, Upper wedge, Frame bolt, Filling wedge, Fixed wedge, Jaw die bolt, Pitman eye protection plate, Disc spring package, Flywheel, Upper Cheek plate, Eccentric shaft, Upper Fixed jaw, Pitman bearing, Upper Moving jaw, Pitman, Center wedges, Frame connecting rods, Lower Cheek plate, Side plate, Lower Fixed jaw, Toggle seat, etc.

Working principle:
The elector motor drives the belt and belt wheel to make the movable jaw to move up and down through the eccentric shaft, and then movable jaw goes up, the angle between the toggle pate and the movable jaw is bigger, thus pushing the movable jaw to get close to the fixed jaw, and at the same time, the materials are crushed or smashed, thus reaching the goal of crushing; when the movable jaw goes down, the angle between the toggle pate and the movable jaw is smaller, under the effect of the draw bar and the spring, the movable jaw moves always from the fixed jaw, and then the crushed materials will be discharged out from the lower mouth of the crushing chamber. With the continuous rotation of the elector motor, the movable jaw of the crusher will do periodic motion to crush and discharge the materials, thus realizing mass production.

The Handling Materials and Application of Jaw Crusher:
Jaw crusher is mainly used for the medium-granularity crushing of all kinds of ores and large materials in mine, metallurgy, building material, highway, railway, water conservancy and chemistry. The maximum compression strength of the materials to be crushed is 320MPa.

The Advantages and Benefits of Jaw Crusher:
Jaw crusher is a crushing machine that is researched and developed very early. With simple and solid structure, reliable work, easy maintenance and repair and low production and construction fees, it has long been widely used for the coarse, medium and fine crushing of various kinds of ores and rocks whose compression strength is 147~245MPa in many industrial departments such as metallurgy, chemistry, building material, power plant and transportation.

All jaw crusher parts supplied by Sino Mahince Industries are made in China. The jaw crusher parts parts including jaw crusher spare parts which Sino Machine Industries supplied were produced per customer’s drawings or specifications.

By

Train parts

A train is a form of rail transport consisting of a series of connected vehicles that usually runs along a rail track to transport cargo or passengers. Motive power is provided by a separate locomotive or individual motors in self-propelled multiple units. Although historically steam propulsion dominated, the most common modern forms are diesel and electric locomotives, the latter supplied by overhead wires or additional rails. Other energy sources include horses, engine or water-driven rope or wire winch, gravity, pneumatics, batteries, and gas turbines. Train tracks usually consist of two running rails, sometimes supplemented by additional rails such as electric conducting rails and rack rails, with a limited number of monorails and maglev guideways in the mix. The word ‘train’ comes from the Old French trahiner, from the Latin trahere ‘pull, draw’.

brake clamp
base plate
train brake parts

There are various types of trains that are designed for particular purposes. A train may consist of a combination of one or more locomotives and attached railroad cars, or a self-propelled multiple unit (or occasionally a single or articulated powered coach, called a railcar).

Railway parts railway clamp bronze clamp
Bronze clamp casting for railway
Bronze Clamp

Featured train or railway parts:
Bronze clamp casting for railway, brake clamp, base plate, Locomotive Driven Gear, Axle box, etc.
Also we offer OEM/ODM train / railway parts. The train parts including train spare parts which Sino Machine Industriessupplied were produced per customer’s drawings or specifications. All the parts are made in China.

By

Car & Truck Automatic Transmission Parts

Car & Truck Automatic Transmission Parts
An automatic transmission, also called auto, self-shifting transmission, n-speed automatic (where n is its number of forward gear ratios), or AT, is a type of motor vehicle transmission that can automatically change gear ratios as the vehicle moves, freeing the driver from having to shift gears manually. Like other transmission systems on vehicles, it allows an internal combustion engine, best suited to run at a relatively high rotational speed, to provide a range of speed and torque outputs necessary for vehicular travel. The number of forward gear ratios is often expressed for manual transmissions as well (e.g., 6-speed manual).

Planet carrier

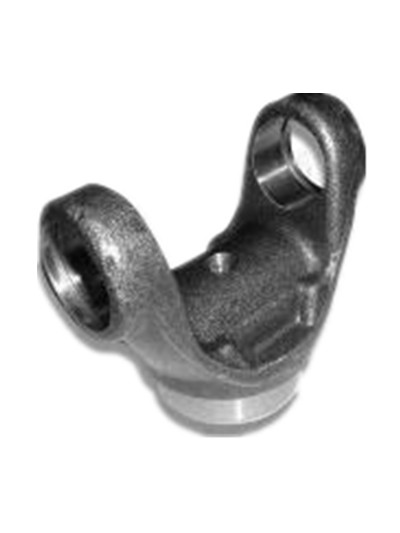

Universal joint

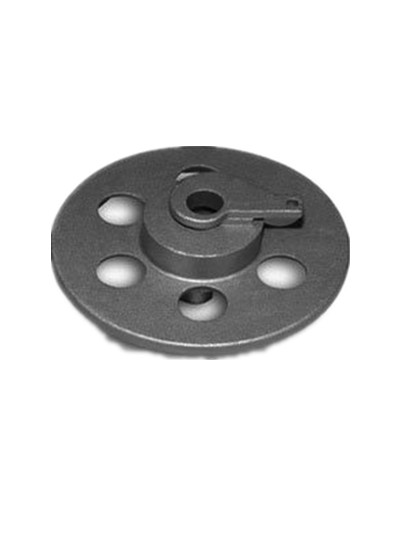

Linkage disk

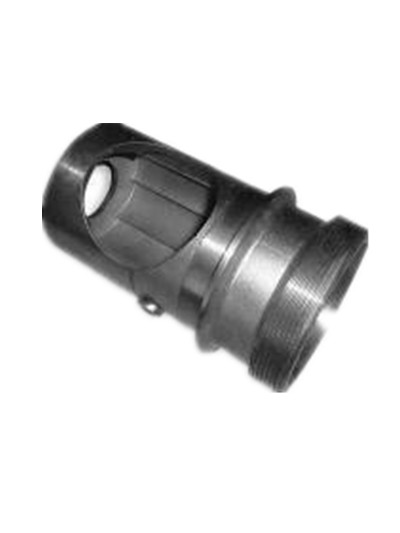

Release sleeve

A manual transmission, also known as a manual gearbox, stick shift, n-speed manual (where n is its number of forward gear ratios), standard, MT, or in colloquial U.S. English, a stick (for vehicles with hand-lever shifters), is a type of transmission used in motor vehicle applications. It uses a driver-operated clutch engaged and disengaged by a foot pedal (automobile) or hand lever (motorcycle), for regulating torque transfer from the engine to the transmission; and a gear selector operated by hand (automobile) or by foot (motorcycle).

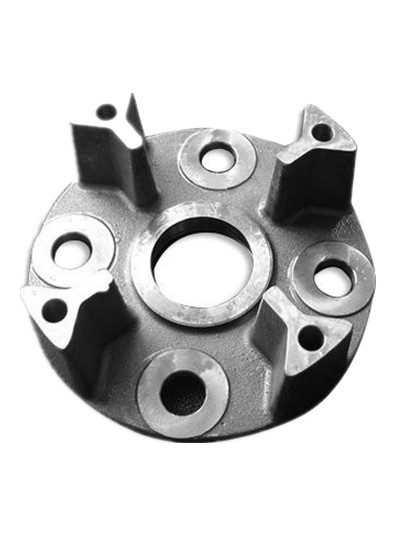

Bearing block
Thrust plate
Steering knuckle
Axle hub

A conventional 5-speed manual transmission is often the standard equipment in a base-model vehicle, while more expensive manual vehicles are usually equipped with a 6-speed transmission instead; other options include automatic transmissions such as a traditional automatic (hydraulic planetary) transmission (often a manumatic), a semi-automatic transmission, or a continuously variable transmission (CVT). The number of forward gear ratios is often expressed for automatic transmissions as well (e.g., 9-speed automatic).

Also we offer OEM/ODM truck & car parts. The truck & car parts including truck & car spare parts which Sino Machine Industry supplied were produced per customer’s drawings or specifications. All the parts are made in China. Chinese Castings Serving the Industrial Markets of the World.

By

Pipe & Connection Fittings

A fitting is used in pipe systems to connect straight pipe or tubing sections, adapt to different sizes or shapes and for other purposes, such as regulating (or measuring) fluid flow. “Plumbing” is generally used to describe the conveyance of water, gas, or liquid waste in domestic or commercial environments; “piping” is often used to describe the high-performance (high-pressure, high-flow, high-temperature or hazardous-material) conveyance of fluids in specialized applications. “Tubing” is sometimes used for lighter-weight piping, especially that flexible enough to be supplied in coiled form.

Rod lug
Valve deck & bonnet
Wheel hub
Yoke

Standard codes are followed when designing (or manufacturing) a piping system. Organizations which promulgate piping standards include:
ASME: American Society of Mechanical Engineers
A112.19.1 Enameled cast-iron and steel plumbing fixtures standards
A112.19.2 Ceramic plumbing fixtures standard
ASTM International: American Society for Testing and Materials
API: American Petroleum Institute
AWS: American Welding Society
AWWA: American Water Works Association
MSS: Manufacturers Standardization Society
ANSI: American National Standards Institute
NFPA: National Fire Protection Association
EJMA: Expansion Joint Manufacturers Association
CGA: Compressed Gas Association

Flange mounting
Hinge block
Connecting rod
Bushing

Pipes must conform to the dimensional requirements of:
ASME B36.10M: Welded and seamless wrought-steel pipe
ASME B36.19M: Stainless-steel pipe
ASME B31.3 2008: Process piping
ASME B31.4 XXXX: Power piping
The B31.3 and B31.4 codes have requirements for piping found in petroleum refineries; chemical, pharmaceutical, textile, paper, semiconductor, and cryogenic plants, and related processing plants and terminals. These codes specify requirements for materials and components, design, fabrication, assembly, erection, examination, inspection and testing of piping. The codes are applicable to piping for all fluids, including raw, intermediate and finished chemicals; petroleum products; gas, steam, air and water; fluidized solids; refrigerants, and cryogenic fluids.

Pulley
Wind power components
Link chain
Locking pin

The material with which a pipe is manufactured is often the basis for choosing a pipe. Materials used for manufacturing pipes include:
Carbon (CS) and galvanized steel
Impact-tested carbon steel (ITCS)
Low-temperature carbon steel (LTCS)
Stainless steel (SS)
Malleable iron
Non-ferrous metals (includes copper, inconel, incoloy and cupronickel)
Non-metallic (includes acrylonitrile butadiene styrene (ABS), fibre-reinforced plastic (FRP), polyvinyl chloride (PVC), high-density polyethylene (HDPE) and toughened glass)
Chrome-molybdenum (alloy) steel — Generally used for high-temperature service
The bodies of fittings for pipe and tubing are most often the same base material as the pipe or tubing connected: copper, steel, PVC, chlorinated polyvinyl chloride (CPVC) or ABS. Any material permitted by the plumbing, health, or building code (as applicable) may be used, but it must be compatible with the other materials in the system, the fluids being transported and the temperature and pressure inside (and outside) the system. Brass or bronze fittings are common in copper piping and plumbing systems. Fire hazards, earthquake resistance and other factors also influence the choice of fitting materials.

Double Bolt Clamps
Shifting arm
Semi-circle block left side
Custom Blocks

Also we offer OEM/ODM pipe & fitting parts. The pipe & fitting parts including spare parts which Sino Machine Industry supplied were produced per customer’s drawings or specifications. All the parts are made in China. Chinese Castings Serving the Industrial Markets of the World.
