Cast Steel Anode Yoke — Electrolytic Aluminium Production Consumables

The cast steel anode yoke — also referred to as anode steel claw, electrolytic claw, electrolysis claw or anode yoke bracket — is a critical consumable in the electrolytic aluminium production process. It forms the structural and electrical connection between the aluminium guide rod above and the anode carbon block below, transmitting both the mechanical load and the high-amperage direct current required for the electrolytic reduction of aluminium oxide to aluminium metal.

SMI has been supplying cast steel anode yokes to primary aluminium smelters for over 30 years. All configurations are produced to customer specification — covering claw geometry, dimensional drawing, steel grade and electrical conductivity requirements.

Cast steel anode yoke six-claw configuration — new production unit showing arc profile claw arms and central connection body, manufactured to customer dimensional drawing

Cast steel anode yoke in service — six-claw configuration showing cylindrical claw end nodes and central connection plate, primary aluminium electrolytic cell application

Cast steel anode yoke eight-claw configuration — single unit three-quarter view showing full claw arrangement and cylindrical end nodes, for very high-amperage modern reduction cells

Role of the Anode Yoke in Electrolytic Aluminium Production

In a Hall-Héroult electrolytic cell, the anode assembly consists of an aluminium guide rod connected via the cast steel yoke to a prebaked anode carbon block. The yoke serves three simultaneous functions:

• Mechanical support — carrying the weight of the anode carbon block suspended in the electrolytic bath
• Electrical conduction — transmitting high-amperage direct current from the aluminium guide rod through the steel yoke into the carbon block
• Thermal resistance — withstanding the high-temperature environment of the electrolytic cell during the anode service cycle

The anode carbon block is consumed progressively during electrolysis — typically requiring anode assembly adjustment every 15 to 18 days as the carbon block reduces in height. When the carbon block is consumed to the minimum serviceable dimension, the complete anode assembly is removed and replaced. The used yoke and aluminium guide rod are then returned to the anode assembly workshop for cleaning, inspection and recycling.

Anode Yoke Service Cycle and Recycling

In-Service Cycle

A cast steel anode yoke and its aluminium guide rod typically complete one full service cycle of approximately one month in the electrolysis workshop before removal. During this period, aluminium slag and electrolyte — primarily cryolite (Na₃AlF₆) and aluminium fluoride — accumulate on the yoke surface and in the joints between the steel claw and the carbon block.

Electrolyte and Slag Removal

After removal from the cell, the used anode assembly is transferred to the anode assembly workshop for processing. Aluminium slag and electrolyte deposits on the guide rod and yoke surface are mechanically removed before the components can be recycled or the yoke returned to service.

Phosphorus Iron Ring Removal

During carbon block casting, a phosphorus iron ring is cast around each steel claw to provide the mechanical and electrical interface between the steel yoke and the carbon anode. After carbon block consumption, this phosphorus iron ring remains on the steel claw and must be pressed off before the yoke can be recycled. The removal process uses hydraulic pressing equipment to apply the controlled force required to separate the iron ring from the steel claw without damaging the yoke geometry.

Shot Blast Cleaning and Recycling

Following electrolyte removal and phosphorus iron ring pressing, the steel yoke is shot blast cleaned to remove residual deposits and surface contamination. Cleaned yokes that meet dimensional and structural inspection criteria are returned to the production cycle for reassembly with a new aluminium guide rod and carbon block.

Manufacturing Process

Melting and Refining

SMI produces cast steel anode yokes using electric arc furnace and medium frequency induction furnace melting, with rare earth element additions during the refining stage. Rare earth refining serves two specific functions in anode yoke production:

• Gas content control — rare earth additions promote the removal of dissolved gases (hydrogen, nitrogen, oxygen) from the molten steel, reducing porosity in the solidified casting and improving the density and structural integrity of the finished yoke
• Electrical conductivity assurance — controlled steel chemistry achieved through rare earth refining ensures the finished yoke meets the electrical conductivity specification required for efficient current transmission through the anode assembly. Low carbon steel Q235 has inherently good electrical conductivity relative to higher-alloy grades — rare earth refining preserves and optimises this property by minimising non-metallic inclusions and dissolved gas content

Casting and Dimensional Control

Anode yoke casting requires accurate control of claw geometry — the dimensional relationship between the steel claws determines the alignment of the carbon block in the electrolytic cell and the uniformity of current distribution across the anode face. Pattern equipment and casting practice are maintained to the dimensional tolerances specified in the customer’s drawing.

Heat Treatment and Inspection

Finished castings are heat treated to the specified mechanical property requirements and subjected to dimensional inspection, visual inspection and hardness verification before despatch. Material certification covering chemical composition and mechanical properties is supplied as standard.

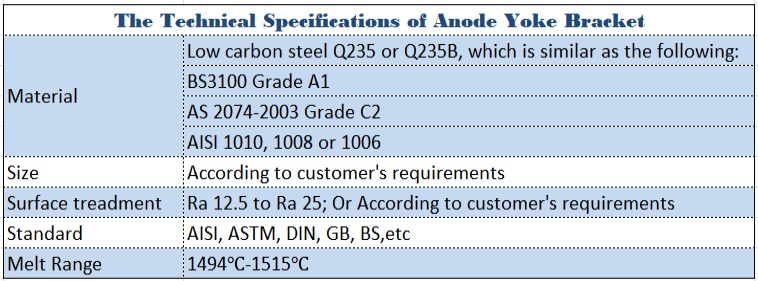

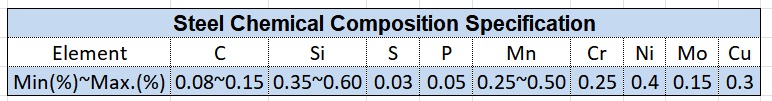

Technical Specifications

Configurations Available

Global Supply

SMI cast steel anode yokes are in active service at primary aluminium smelters across the Middle East, Europe, India, North America and Asia-Pacific, including multiple operations within the world’s highest-output primary aluminium production groups. All supply relationships are subject to confidentiality agreements. Reference accounts are available to qualified buyers under appropriate confidentiality terms.
