Dross Press vs Manual Dross Processing: ROI Analysis

Is a Hydraulic Dross Press Worth the Investment? A Financial and Technical Analysis

Aluminium dross is an unavoidable by-product of every melting and casting operation. How your facility manages that dross determines whether it represents a recoverable asset or a disposal cost — and the difference between the two can be substantial.

This article provides a technical and financial comparison between hydraulic dross pressing and conventional manual dross processing, to help plant managers and operations teams make a well-informed capital investment decision.

What Is Aluminium Dross?

When aluminium is melted, a layer of oxide-rich material forms at the surface of the melt. This material — dross — consists of a mixture of aluminium oxide (Al₂O₃), aluminium nitride, other metallic oxides, and critically, entrapped liquid aluminium metal.

The metallic aluminium content of hot dross varies significantly depending on:

  • Furnace type and operating practice
  • Alloy composition
  • Skimming technique and timing
  • Ambient temperature and humidity

In typical secondary smelting operations, hot dross contains 40–80% metallic aluminium by weight. This is the recoverable fraction — and it represents significant economic value that manual processing routinely fails to capture fully.

Manual Dross Processing: How It Works and Where It Falls Short

In manual processing, hot dross is skimmed from the furnace and either spread on the floor and raked while hot to release entrapped metal, or placed in a dross pan and allowed to cool before being broken up and screened.

The core problem with manual processing is timing. Once dross is removed from the furnace, oxidation continues rapidly. Every minute that passes before the metallic aluminium is separated from the oxide fraction means more metal lost to further oxidation.

Studies across multiple secondary smelter operations consistently show that manual processing recovers only 60–75% of the available metallic aluminium in hot dross. The remainder oxidises or remains entrapped in the oxide cake, ultimately sent for salt furnace processing or landfill — at additional cost.

Additional limitations of manual processing include:

  • Safety risks from handling hot dross in open environments
  • Inconsistent recovery rates depending on operator skill and attention
  • Dross fume emissions from prolonged hot dross exposure
  • No data capture — manual processes generate no records of dross volume, metal recovery rate, or oxide quality

How a Hydraulic Dross Press Works

A hydraulic dross press applies controlled mechanical pressure to hot dross immediately after skimming — typically within 2–4 minutes of removal from the furnace. The pressing action forces liquid aluminium out of the oxide matrix and into a collection pan, where it solidifies into a recoverable metal button or sow.

The key operating principle is speed and pressure. By pressing the dross while it is still above the aluminium liquidus temperature (660°C), the metallic fraction flows freely under pressure. A well-operated dross press typically recovers 85–95% of the available metallic aluminium — a 15–30 percentage point improvement over manual methods.

Modern hydraulic dross presses also offer:

  • Enclosed pressing chamber — significantly reduces fume emissions and improves workplace safety
  • Consistent, repeatable process independent of operator skill
  • Digital monitoring of press cycles, dross weight, and metal yield
  • Reduced oxide cake volume, improving downstream handling and disposal economics

Financial Analysis: When Does a Dross Press Pay Back?

The return on investment for a dross press depends on three variables: dross volume, aluminium price, and current manual recovery rate.

Example calculation — medium-scale secondary smelter:

Parameter Value
Annual dross generated 1,200 tonnes
Average metallic Al content 55%
Available metallic Al 660 tonnes/year
Current manual recovery rate 68%
Metal recovered manually 449 tonnes/year
Dross press recovery rate 90%
Metal recovered with press 594 tonnes/year
Additional metal recovered 145 tonnes/year
Aluminium price (LME + premium) USD 2,400/tonne
Additional annual revenue USD 348,000/year

Against a capital investment of USD 180,000–320,000 for a mid-range hydraulic dross press (depending on capacity and specification), the simple payback period in this example is 7–11 months.

Even in operations with lower dross volumes or lower aluminium prices, payback periods under 24 months are common — making dross press investment one of the highest-return capital projects available to aluminium recyclers.

Four Factors That Affect Dross Press ROI

Dross Temperature at Pressing Time

The closer to furnace temperature, the higher the metal yield. Facilities that can position the dross press within 10–15 metres of the furnace tap consistently achieve better recovery than those with longer transport distances.

Dross Composition

High-oxide drosses (from reactive alloys or poor furnace practice) yield less metal regardless of pressing method. Improving furnace practice — lid management, flux use, skimming frequency — increases the available metal fraction before the dross press even comes into play.

Press Capacity Matching

A press that is undersized for your dross generation rate creates a bottleneck — dross cools while waiting and recovery rates drop. Matching press cycle time to furnace skimming frequency is a critical specification decision.

Oxide Cake Offtake

The pressed oxide cake (typically 10–20% residual Al content) still has value as a secondary raw material for salt furnace operators or cement producers. Establishing a reliable offtake agreement for pressed oxide cake improves the overall economics further.

Conclusion

For any aluminium melting operation generating more than 400–500 tonnes of dross per year, the financial case for hydraulic dross pressing is compelling. The combination of higher metal recovery, improved workplace safety, reduced fume emissions, and consistent process data makes it a sound investment by both financial and operational measures.

Manual processing has its place in very small-scale operations — but as a long-term strategy for any facility serious about metal yield and operational efficiency, it is not a competitive option.

Contact our engineering team for a site-specific ROI calculation based on your actual dross volumes and alloy mix.

By Leave a Comment

SMI Dross Processing in Aluminum Recycling Operations

Dross Processing in Aluminium Recycling Operations — Pan Design, Press Configuration and Why Results Vary

SMI alloy steel dross pan with multi-hole drain configuration and fork channels for aluminium casthouse dross processing
SMI alloy steel dross pan — multi-hole drain configuration with double counter-sink design, fork channels and large pan mass for maximum thermal cooling contact. Manufactured from proprietary alloy steel formulation for thermal shock resistance and long service life in continuous casthouse operation.

SMI has been supplying dross pans and dross press systems to the aluminium industry for over 30 years. Since 2009, Mr. David Roth has been our head consultant, bringing decades of experience in the global aluminium industry to SMI’s equipment design and customer application work.

All of the major players in aluminium melting and casting have purchased SMI quality castings. The observations in this article are drawn from that operational experience — from installations that worked well and from installations that did not, and from understanding precisely why the difference occurred.

The Dross Pan — Where Recovery Begins

The dross pan is not a passive container. Its design directly determines how much metal is recovered in the pressing cycle that follows. The unique characteristics of SMI’s dross pan design allow for a significant degree of cooling contact between the dross and the cast steel — a function of pan mass, geometry and surface area that cannot be replicated by a simple fabricated vessel.

The drain hole configuration is a specific engineering decision, not a standard feature. The number of holes and the double counter-sink design allows for the maximum drain possible without dross sticking in the holes — a failure mode that renders the drain function ineffective and forces operators to intervene manually. The distance between the skim position and the sow mould is also considered carefully in the pan design, to allow large drain volumes without the pans freezing together during the transfer process.

The cooling cycle for correctly specified dross pans is approximately two hours before the material can be rotated out. The large pan mass is critical to achieving this result — it is what drives the thermal extraction that makes the subsequent pressing cycle effective.

Some earlier pan designs in the industry relied on single-hole drain configurations. A single drain point is inherently prone to blockage given the viscosity and oxide content of hot dross — when it blocks, the entire drain function is lost. The single-chamber pan geometry also limits the cooling and plating action achievable during pressing. SMI’s multi-hole, double counter-sink design addresses both failure modes directly.

Hot aluminium dross being skimmed from the furnace into the dross pan — time from skimming to pressing is the critical variable in metal recovery
Liquid aluminium visible in freshly skimmed hot dross — oxidation begins immediately after skimming

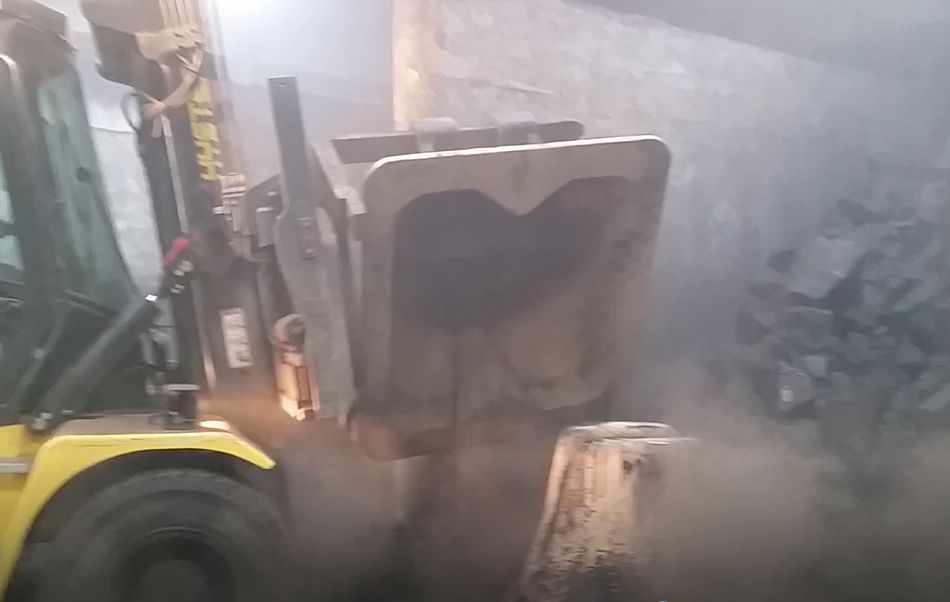

Forklift transfer of loaded dross pan to the dross press — pan design accommodates standard fork truck specifications for each installation

Press Capacity — The Operational Variable Most Often Underestimated

The most consistent cause of dross press underperformance in the field is not equipment quality — it is insufficient press capacity relative to the dross generation rate of the operation.

The mechanism is straightforward. Hot dross skimmed from the furnace begins oxidising immediately. The cooling and plating action that is the primary benefit of pressing — the conversion of liquid aluminium droplets into a recoverable solid block — requires the dross to reach the press while still at temperature. If a dross pan sits for more than 15 minutes before pressing, this process is already significantly compromised. The dross has cooled, the liquid aluminium has partially oxidised, and the pressing cycle produces a result that does not reflect the capability of the equipment.

When multiple pans queue in front of a single press, the pans at the back of the queue are already cold before they are processed. Operators observe poor results, conclude that pressing is ineffective, and gradually stop using the equipment — not because the press is at fault, but because the system was never configured with adequate capacity for the volume of dross being generated.

The practical implication for system specification is direct: the number of presses required for an operation is determined by the dross generation rate and the 15-minute processing window — not by capital budget alone. An undercapacity installation does not produce partial results; it produces results that appear to confirm that pressing does not work, which is a different and more damaging outcome.

The Pan and Press Head as a Matched System

The most important engineering decision in a dross press installation is the casting design of the pan and the press head as a matched pair. The press head must seat correctly against the pan walls to maintain an effective seal under hydraulic pressure — a poor geometric match allows dross to escape under compression and breaks the thermal contact that drives cooling performance.

SMI designs the pan and press head together, specifically for each customer’s furnace configuration, dross volumes and material handling capabilities — fork truck specifications, transfer distances and pan positioning. The combination of pan design and press head geometry determines the fastest possible cooling rate, the highest achievable drain volume and the most effective plating action for the specific dross type being processed.

The press itself — hydraulics, frame, automation — is in SMI’s view a delivery mechanism for the casting design. A high-quality press delivering poor results is almost always a pan-and-head geometry problem, not a press problem. SMI’s focus is on providing a high-quality, simple, low-maintenance press that fully utilises the recovery capability built into the casting design.

Operational Recommendations

Based on over 30 years of dross press installations across primary smelters, secondary smelters and recycling operations, SMI’s application engineering team consistently observes the following in operations that achieve the best results:

  • Minimise time from skimming to pressing — the 15-minute window is a real operational constraint, not a guideline. Workflow design should prioritise getting hot dross to the press as the first priority after skimming.
  • Size press capacity to dross generation rate — calculate the number of pans generated per shift and confirm that press capacity can process them all within the 15-minute window. If the numbers do not support a single press, two presses is the correct specification.
  • Specify pan and press head as a matched set — do not select the press and the pan independently. The geometric relationship between them is the primary determinant of recovery performance.
  • Maintain the pan-to-head seal — a worn or damaged mating face on either the pan or the head degrades recovery performance continuously. Replacement scheduling should be based on dimensional inspection, not visible failure.
  • Account for dross type — different furnace types and alloy practices produce dross with different characteristics. Pan and head geometry should be confirmed for the specific dross type being processed, not selected from a generic catalogue.

SMI Dross Pan Design — Key Features

Design Feature Function Failure Mode Addressed
Multi-hole drain configuration Maximum drain volume during pressing Single-hole blockage — loss of drain function
Double counter-sink hole design Prevents dross sticking in drain holes Hole blockage requiring manual intervention
Large pan mass Thermal mass drives cooling contact with dross Insufficient cooling — poor plating action
Pan-to-head matched geometry Effective seal under hydraulic pressure Dross escape and thermal seal failure under compression
Furnace-specific dimensioning Correct volume for furnace dross output Undersized or oversized pans relative to dross generation
Fork truck compatibility Safe transfer from furnace to press Handling delays that extend the pre-press window beyond 15 minutes

Related Products

Contact SMI — Dross Processing Application Enquiry

To discuss dross pan and press head specification for your operation, or to review an existing installation that is not achieving expected recovery results, please contact SMI’s application engineering team. Please provide your furnace type, dross generation rate per shift, current pan and press configuration, and dross type.

SMI will respond with a written assessment and recommendation. Contact SMI →
