Cast Steel Anode Yoke — Electrolytic Aluminium Production Consumables
The cast steel anode yoke — also referred to as anode steel claw, electrolytic claw, electrolysis claw or anode yoke bracket — is a critical consumable in the electrolytic aluminium production process. It forms the structural and electrical connection between the aluminium guide rod above and the anode carbon block below, transmitting both the mechanical load and the high-amperage direct current required for the electrolytic reduction of aluminium oxide to aluminium metal.
SMI has been supplying cast steel anode yokes to primary aluminium smelters for over 30 years. All configurations are produced to customer specification — covering claw geometry, dimensional drawing, steel grade and electrical conductivity requirements.
Role of the Anode Yoke in Electrolytic Aluminium Production
In a Hall-Héroult electrolytic cell, the anode assembly consists of an aluminium guide rod connected via the cast steel yoke to a prebaked anode carbon block. The yoke serves three simultaneous functions:
- Mechanical support — carrying the weight of the anode carbon block suspended in the electrolytic bath
- Electrical conduction — transmitting high-amperage direct current from the aluminium guide rod through the steel yoke into the carbon block
- Thermal resistance — withstanding the high-temperature environment of the electrolytic cell during the anode service cycle
The anode carbon block is consumed progressively during electrolysis — typically requiring anode assembly adjustment every 15 to 18 days as the carbon block reduces in height. When the carbon block is consumed to the minimum serviceable dimension, the complete anode assembly is removed and replaced. The used yoke and aluminium guide rod are then returned to the anode assembly workshop for cleaning, inspection and recycling.
Anode Yoke Service Cycle and Recycling
In-Service Cycle
A cast steel anode yoke and its aluminium guide rod typically complete one full service cycle of approximately one month in the electrolysis workshop before removal. During this period, aluminium slag and electrolyte — primarily cryolite (Na₃AlF₆) and aluminium fluoride — accumulate on the yoke surface and in the joints between the steel claw and the carbon block.
Electrolyte and Slag Removal
After removal from the cell, the used anode assembly is transferred to the anode assembly workshop for processing. Aluminium slag and electrolyte deposits on the guide rod and yoke surface are mechanically removed before the components can be recycled or the yoke returned to service.
Phosphorus Iron Ring Removal
During carbon block casting, a phosphorus iron ring is cast around each steel claw to provide the mechanical and electrical interface between the steel yoke and the carbon anode. After carbon block consumption, this phosphorus iron ring remains on the steel claw and must be pressed off before the yoke can be recycled. The removal process uses hydraulic pressing equipment to apply the controlled force required to separate the iron ring from the steel claw without damaging the yoke geometry.
Shot Blast Cleaning and Recycling
Following electrolyte removal and phosphorus iron ring pressing, the steel yoke is shot blast cleaned to remove residual deposits and surface contamination. Cleaned yokes that meet dimensional and structural inspection criteria are returned to the production cycle for reassembly with a new aluminium guide rod and carbon block.
Manufacturing Process
Melting and Refining
SMI produces cast steel anode yokes using electric arc furnace and medium frequency induction furnace melting, with rare earth element additions during the refining stage. Rare earth refining serves two specific functions in anode yoke production:
- Gas content control — rare earth additions promote the removal of dissolved gases (hydrogen, nitrogen, oxygen) from the molten steel, reducing porosity in the solidified casting and improving the density and structural integrity of the finished yoke
- Electrical conductivity assurance — controlled steel chemistry achieved through rare earth refining ensures the finished yoke meets the electrical conductivity specification required for efficient current transmission through the anode assembly. Low carbon steel Q235 has inherently good electrical conductivity relative to higher-alloy grades — rare earth refining preserves and optimises this property by minimising non-metallic inclusions and dissolved gas content
Casting and Dimensional Control
Anode yoke casting requires accurate control of claw geometry — the dimensional relationship between the steel claws determines the alignment of the carbon block in the electrolytic cell and the uniformity of current distribution across the anode face. Pattern equipment and casting practice are maintained to the dimensional tolerances specified in the customer’s drawing.
Heat Treatment and Inspection
Finished castings are heat treated to the specified mechanical property requirements and subjected to dimensional inspection, visual inspection and hardness verification before despatch. Material certification covering chemical composition and mechanical properties is supplied as standard.
Technical Specifications
| Parameter | Specification |
|---|---|
| Material | Low carbon steel Q235 or Q235B — equivalent to BS3100 Grade A1, AS 2074-2003 Grade C2, AISI 1010 / 1008 / 1006 |
| Melting process | Electric arc furnace and medium frequency induction furnace |
| Refining | Rare earth addition — gas content control and electrical conductivity optimisation |
| Melt range | 1494°C – 1515°C |
| Size | According to customer’s requirements |
| Surface finish | Ra 12.5 to Ra 25 — or according to customer’s requirements |
| Applicable standards | AISI, ASTM, DIN, GB, BS and equivalent |
| Anode replacement cycle | Typically every 15–18 days per cell position |
| Yoke service life | Approximately one month per cycle before removal and recycling |
| Quality documentation | Chemical composition certificate, mechanical property report, dimensional inspection report |
Configurations Available
| Configuration | Description | Typical Application |
|---|---|---|
| Parallel three-claw | Three claws in parallel planar arrangement | Standard medium-capacity electrolytic cells |
| Four-claw | Four claws in planar arrangement | Higher-capacity cells requiring greater current distribution |

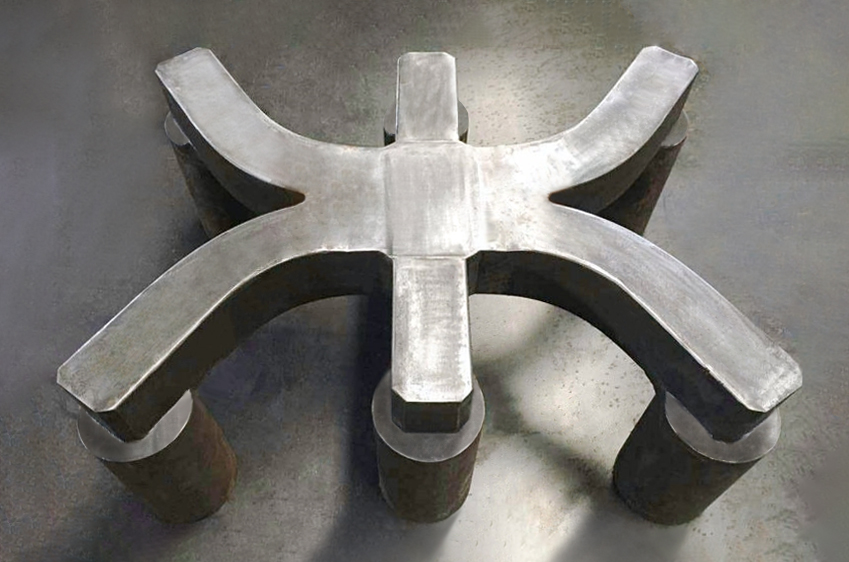

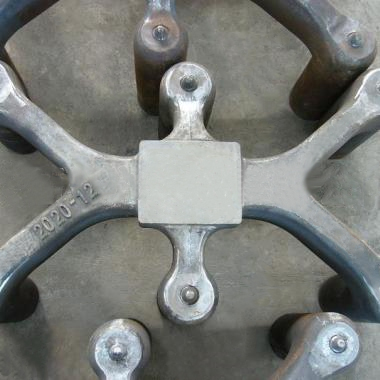

| Three-dimensional four-claw | Four claws in three-dimensional spatial arrangement | Large-format cells requiring optimised current distribution |

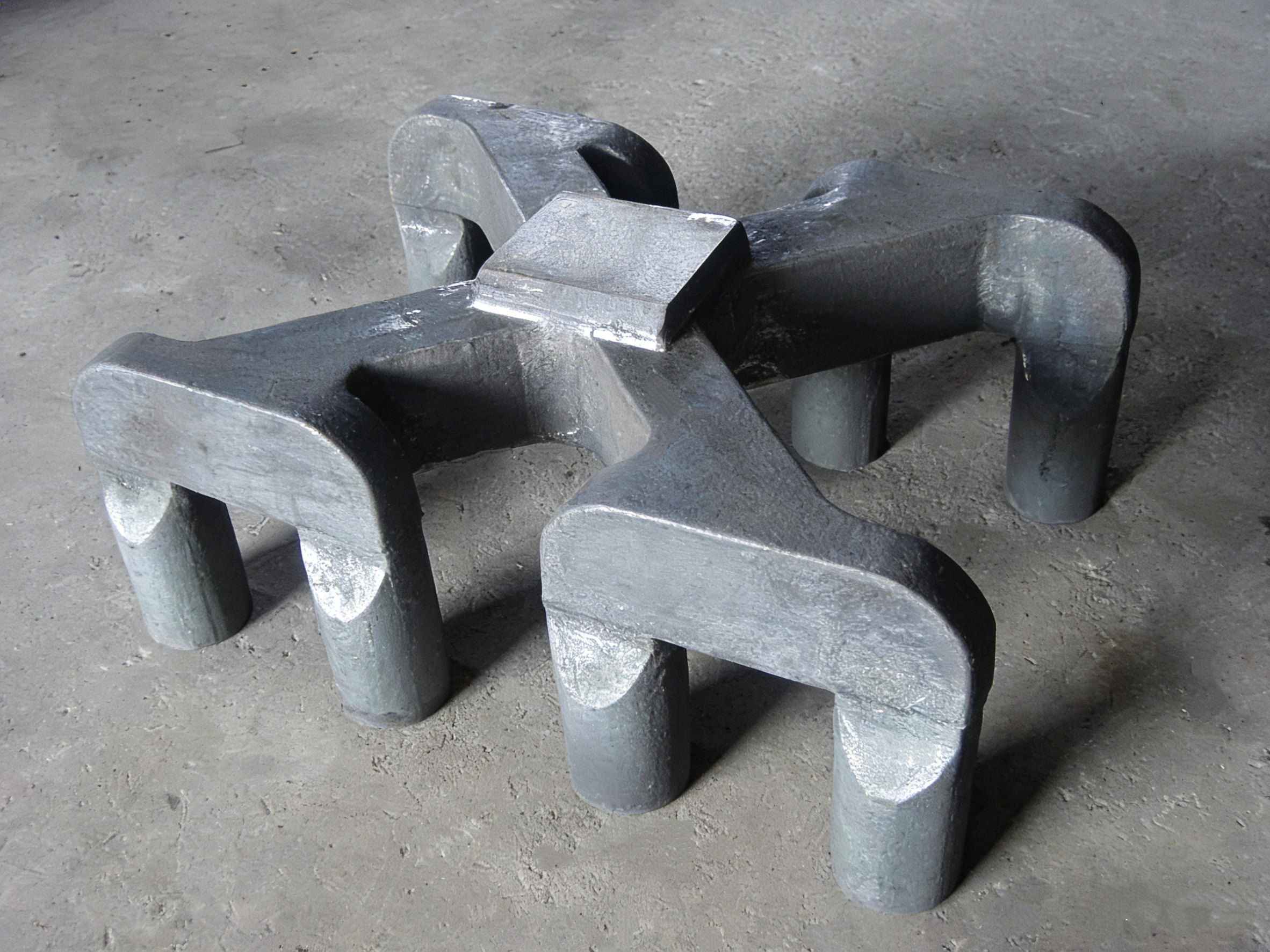

| Six-claw | Six claws for high-capacity anode assemblies | High-amperage large-format electrolytic cells |
| Eight-claw | Eight claws for maximum current distribution | Very high-amperage modern reduction cells |
| Double yoke | Twin yoke configuration for double anode assemblies | Double anode cell configurations |
| Custom | Any configuration to customer drawing | New cell designs and retrofit requirements |
Global Supply
SMI cast steel anode yokes are in active service at primary aluminium smelters across the Middle East, Europe, India, North America and Asia-Pacific, including multiple operations within the world’s highest-output primary aluminium production groups. All supply relationships are subject to confidentiality agreements. Reference accounts are available to qualified buyers under appropriate confidentiality terms.
بالعربية — قيود الأنود الفولاذية المصبوبة لإنتاج الألومنيوم الإلكتروليتي
قيد الأنود الفولاذي المصبوب — المعروف أيضاً بمخلب الأنود الفولاذي أو مخلب التحليل الكهربائي — هو مستهلك أساسي في عملية إنتاج الألومنيوم الإلكتروليتي. يربط قضيب توجيه الألومنيوم العلوي بكتلة الكربون الأنودية السفلية، وينقل التيار المستمر عالي الأمبير اللازم لعملية اختزال أكسيد الألومنيوم إلكتروليتياً. المادة: فولاذ منخفض الكربون Q235 مع إضافات عناصر الأرض النادرة. التكوينات المتاحة: ثلاثة مخالب متوازية، أربعة مخالب، أربعة مخالب ثلاثية الأبعاد، ستة مخالب، ثمانية مخالب، والقيود المزدوجة. جميع المواصفات وفق رسومات العميل. للاستفسار، تواصل مع فريق SMI →
En Español — Yugos de Ánodo de Acero Fundido para Producción de Aluminio Electrolítico
El yugo de ánodo de acero fundido — también denominado garra de acero del ánodo, garra de electrólisis o garra electrolítica — es un consumible esencial en el proceso de producción de aluminio electrolítico. Conecta la varilla guía de aluminio superior con el bloque de carbono anódico inferior, transmitiendo la corriente continua de alta intensidad necesaria para la reducción electrolítica del óxido de aluminio. Material: acero de bajo carbono Q235 con adiciones de tierras raras. Configuraciones disponibles: tres garras paralelas, cuatro garras, cuatro garras tridimensionales, seis garras, ocho garras y yugos dobles. Todas las especificaciones según planos del cliente. Para consultas, contacte al equipo de SMI →
Related Products — SMI Aluminium Industry Equipment
- Dross Skim Pans and Sow Molds — alloy steel casthouse consumables
- Alloy Steel Sow Mold — 8630 WCB 9 and SMI & HT anti-thermal shock material
- Aluminum Dross Press — SMI40, SMI60, SMI80 complete dross press systems
- Contact SMI — Anode Yoke Enquiry →
Request a Quotation
To enquire about cast steel anode yoke supply, please provide the following at enquiry stage:
- Cell type and amperage — reduction cell design and operating current
- Claw configuration — number of claws and spatial arrangement
- Dimensional drawing or sketch — claw spacing, yoke body dimensions
- Steel grade and electrical conductivity specification
- Annual consumption volume — yokes per year per cell line
- Current supplier and any known quality or service life issues
SMI will respond with a written technical assessment and commercial proposal. Contact SMI — Anode Steel Yoke Enquiry →
